17 piece(s)   found for reference
DTI1358DG / DTI1358DG2

1. Search for your part in the views opposite 1. Search for your part in the views below
View all parts
Circuitry card cable plat chef
Circuitry card cable plat chef
Reference on the exploded view: 0

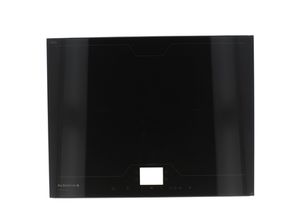

Ceramic hob assembled
Ceramic hob assembled
Reference on the exploded view: 100
Seal table 2m30
Seal table 2m30
Reference on the exploded view: 102

8,20 €

Cover hanger de commande
Reference on the exploded view: 115

47,40 €

Circuit keyboard
Circuit keyboard
Reference on the exploded view: 116

Technical spare part - We advise you to contact a specialized technician

214,00 €

Attachment table
Attachment table
Reference on the exploded view: 125

21,40 €

Cable sector
Reference on the exploded view: 130
Card support power
Card support power
Reference on the exploded view: 140

45,10 €

Disc assembled
Disc assembled
Reference on the exploded view: 160

36,70 €

Inductor assembled merlin
Inductor assembled merlin
Reference on the exploded view: 161

Technical spare part - We advise you to contact a specialized technician

164,00 €

Spike 3 pines ctn_tw-l250
Spike 3 pines ctn_tw-l250
Reference on the exploded view: 163

Technical spare part - We advise you to contact a specialized technician

45,10 €

Spike 2 pines ctn_tw-l250
Spike 2 pines ctn_tw-l250
Reference on the exploded view: 164

Technical spare part - We advise you to contact a specialized technician

45,10 €

Stopper
Stopper
Reference on the exploded view: 170

12,60 €

Bag screw
Bag screw
Reference on the exploded view: 173

50,00 €

Seal h:9 mm
Seal h:9 mm
Reference on the exploded view: 174

12,60 €

Fan ix7
Reference on the exploded view: 196

15,30 €

Circuit power ix7 4600w merlin
Circuit power ix7 4600w merlin
Reference on the exploded view: 198

Technical spare part - We advise you to contact a specialized technician

Documents

Exploded views, spare parts (1) Exploded views, spare parts
